PC NAVIGATION LIGHTS

BEETEE® BRAND Polycarbonate Body Single Tier Navigation lights meeting the latest NAVAL STANDARDS as under:

• JSS 55555:2012,
• NSS Gr-II ,
• IEC 60529 ,
• IEC 12063
• NES 1004
• COLREG 1972 AS AMENDED
• MSC 253(83)
• ENCLOSURE PROTECTION IP 56

The lights available are

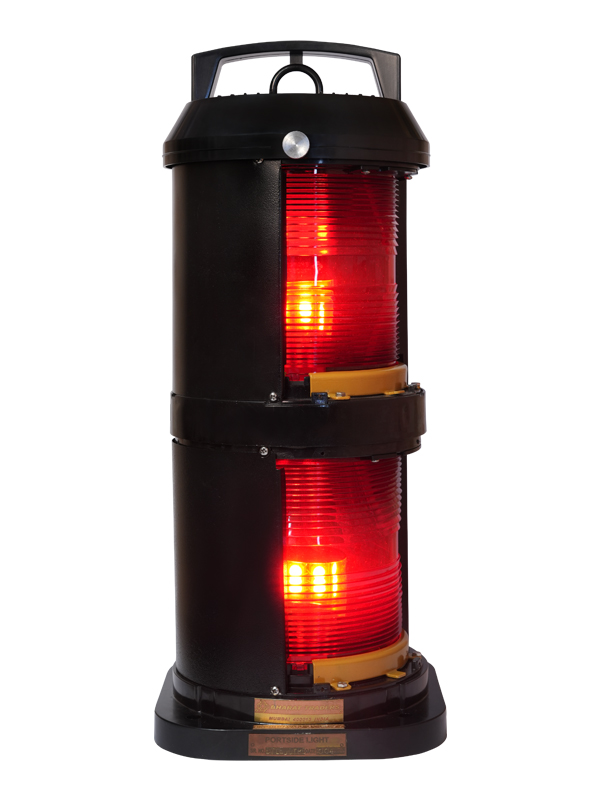

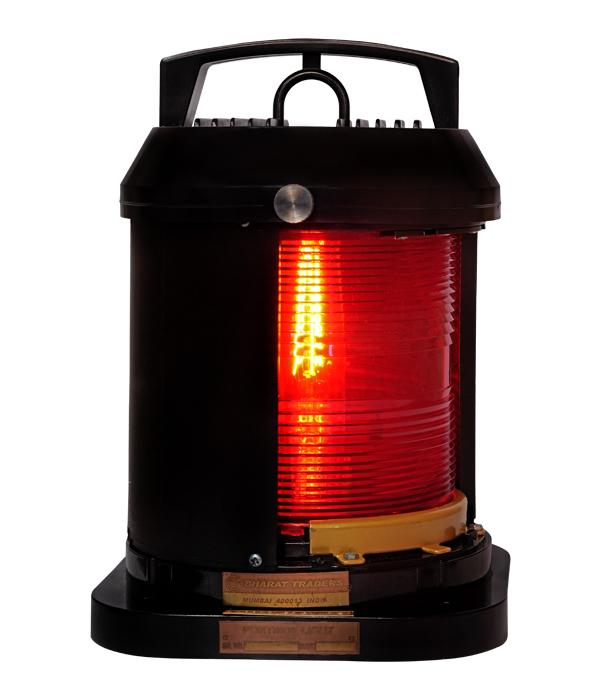

1. Portside Light

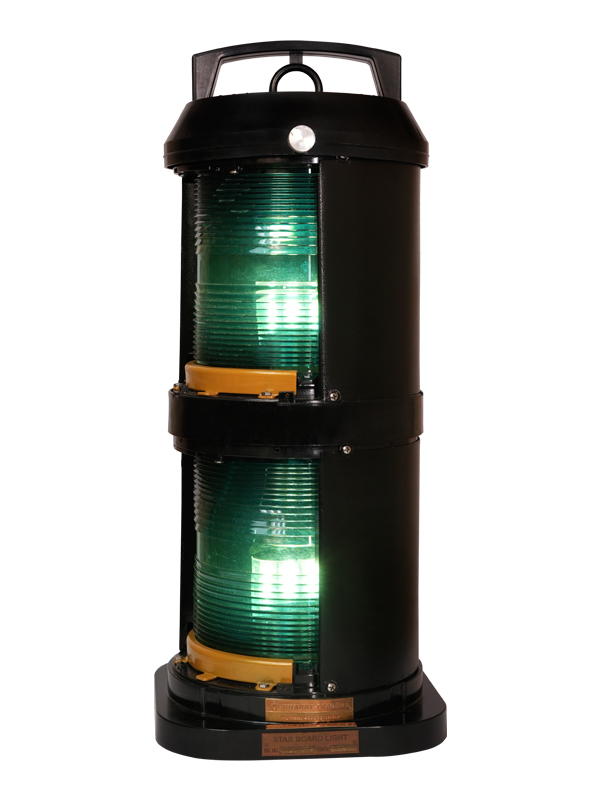

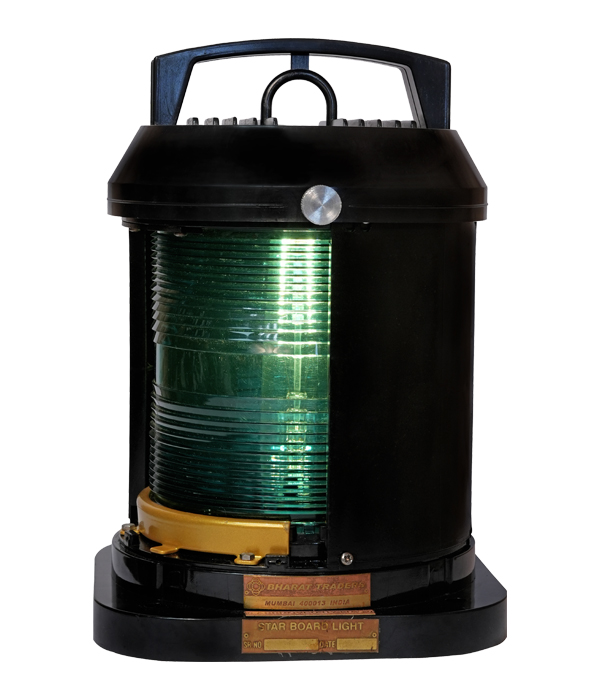

2. Starboard Sidelight

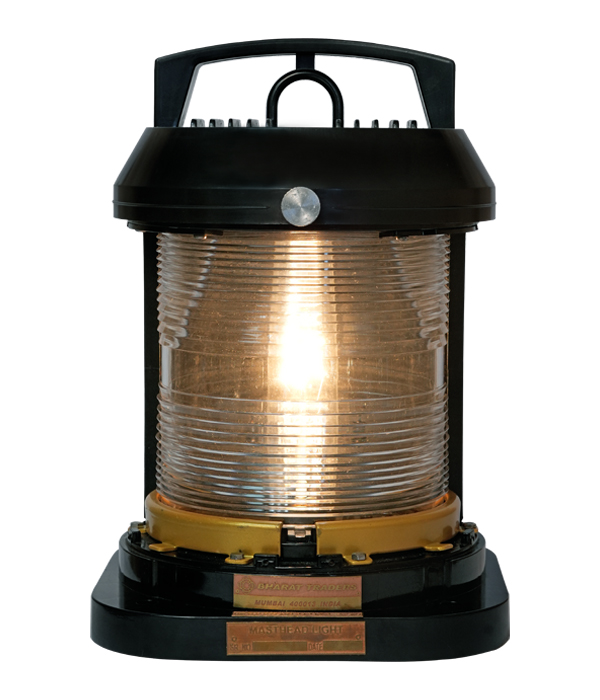

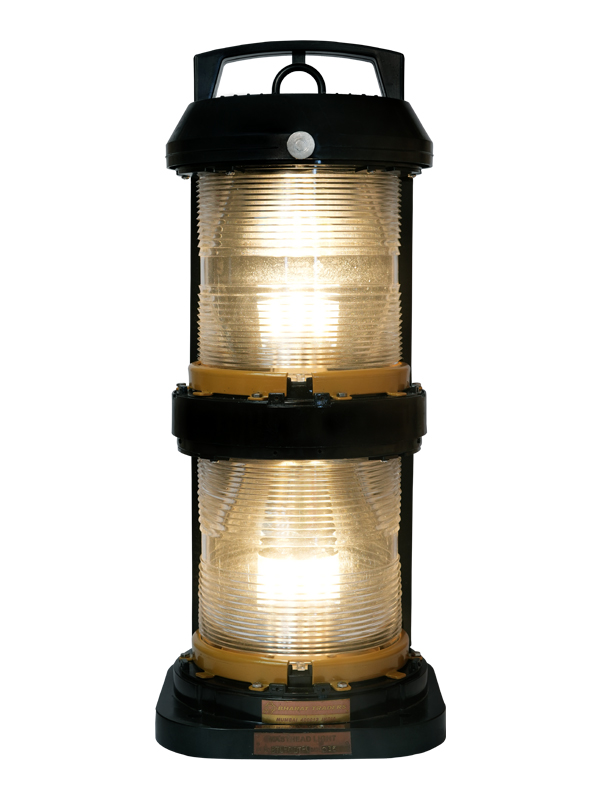

3. Masthead Light
4. Stern Light
5. Towing Light- Yellow
6. All round Red Light (NUC)
7. All Round White Light ( Anchor)
8. All Round Green Light
9. All round Blue Light

Single Tier lights are available with P-28 bulbs working on either 24V / 230V.
Base Dimension: 22 cms X 22 cms, Height: 31 cms and
Weight: Approx 2.5 Kgs

BEETEE® Navigation Light	Arc of Visibility	Range (Nautical Miles)	Colour
Starboard Side Light	112.5°	3 NM	Green
Portside Light	112.5°	3 NM	Red
Masthead Light	225°	6 NM	White
Anchor Light	360°	3 NM	White
Stern Light	135°	3 NM	White
All Round Green	360°	3 NM	Green
NUC Light	360°	3 NM	Red
Towing Light	135°	3 NM	Yellow

The BEETEE® BRAND Navigation lights with Acrylic lenses meet the latest INTERNATIONAL REGULATIONS as under:

COLREG 1972 AS AMENDED
MSC 253(83)
EN 14744
IEC 60529
IEC 60945
IP 56

Approved by the INDIAN REGISTER OF SHIPPING (IRS), ( CERTIFICATE NO.2025TAC238 DATED 9.12.2025 VALID TILL 8.12.2030 ) the Navigation Lights have E-27 Marine Incandescent and LED bulb fixtures which are approved for use in all sea going Vessels of all length above 12 Meters in length. The main body is made of Polycarbonate. They are fitted with high quality Acrylic lenses. The Navigation lights have been type tested as per the latest International Regulations and each Light is subject to a thorough quality control tests to ensure long lasting performance.

The lights are be fitted with ISI approved cables / LFH CABLES of 1.5 metres as per customer request .

The lights manufactured are
